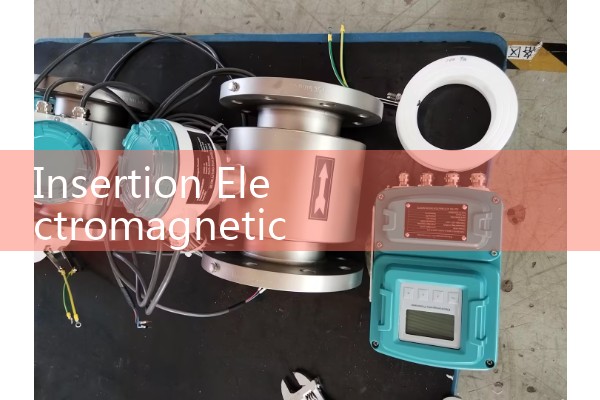

Insertion Electromagnetic Flow Meter: Adjustable Hot-Tap Pipe Probes
Quick Answer
Insertion electromagnetic flow meters with hot-tap probes measure conductive liquids from the outside of the pipe while the line stays under pressure. They reduce installation costs by up to 60 percent compared to full-bore meters on pipe sizes above DN150. Silver Instruments supplies these probes in sizes from DN80 to DN3000 with options for PTFE lining, Hastelloy electrodes, and 4 mA to 20 mA HART output.
What Makes Hot-Tap Insertion Probes Different
Full-bore magmeters force you to cut the pipe and stop the process. In many plants that is just not possible. A hot-tap insertion probe goes in through a ball valve under full line pressure. The sensor tip sits at the correct insertion depth and measures velocity across a known flow profile. Because the probe only sees a small cross section, the electronics convert velocity to volumetric flow using the pipe inside diameter. You enter the pipe ID during setup and the transmitter calculates flow rate in m³/h, L/s, or gallons per minute.
We ship these probes with a DN40 or DN50 ball valve assembly and a welded fitting. The fitting gets welded onto the pipe first. Then the technician mounts the valve, drills through with a hot-tap machine, retracts the drill, closes the valve, and mounts the probe. The entire operation takes less than two hours on a DN200 water main. No shutdown, no draining, no lost production.
When to Choose Insertion Over Full-Bore
Most engineers skip this part but here is the rule we use. On pipes below DN100 a full-bore magmeter almost always makes more sense. Accuracy is tighter and the price difference is small. Above DN150 the cost of a full-bore meter climbs fast. A DN600 flanged magmeter with PTFE liner can cost three to five times more than an insertion probe with the same transmitter. The insertion probe gives you plus or minus 1 percent of reading accuracy on a fully developed flow profile. That is enough for pump station monitoring, district metering, cooling water, and irrigation schemes.
We have seen this on customer sites many times. A water utility in Queensland replaced three DN500 full-bore meters with insertion probes and cut their project cost from AUD 42,000 to under AUD 15,000. The measured flow totals matched the downstream reservoir balance within 1.5 percent. That is real money saved without losing useful data.
Sensor Construction and Lining Options
The wetted parts matter more than the transmitter when you measure aggressive fluids. Standard probes use 316L stainless steel electrodes and a polypropylene or PVDF body. For seawater and desalination brine we recommend Hastelloy C electrodes and a PTFE or PFA insulated stem. The ground ring is also Hastelloy or titanium. If you measure concentrated sulfuric acid above 90 percent, carbon steel pipe is fine but the probe still needs PTFE and platinum electrodes.
Temperature ratings go from minus 20 °C to 80 °C with the standard compact transmitter. With a remote-mounted transmitter the sensor itself can handle 120 °C short term. We always ask about CIP and SIP cycles in food and beverage plants. For hygienic insertion probes we use 316L with Ra ≤ 0.8 µm finish and Tri‑Clamp or DIN 11851 process connections instead of a welded ball valve assembly.
Typical Industry Applications
Water and wastewater. Raw water intake from rivers, treated effluent discharge, sludge recirculation lines up to 3 percent solids. The hot‑tap design is standard for large‑diameter concrete or steel pipes where cutting and welding a full‑bore spool is impractical.
Desalination plants. Seawater feed, brine reject, and permeate lines. Insertion probes with Hastelloy electrodes and titanium ground rings survive 45 000 µS/cm brine at 35 °C. A customer in Saudi Arabia runs twelve DN800 probes on brine lines and expects five years of lifetime before
HVAC and district cooling. Chilled water and condenser water loops in large commercial buildings. The insertion probe installs in vertical or horizontal pipe without breaking the water balance. Maintenance crews can retract the sensor and check the electrodes during yearly shutdowns.
Chemical and petrochemical. Acids, caustic soda, cooling water to crackers, and firewater ring mains. ATEX Zone 1 and Zone 2 certifications are available when you order the explosion‑proof transmitter housing. We also supply IECEx versions for Australia and Southeast Asia.
Mining and mineral processing. Slurry lines with magnetic ore, tailings pipelines, and process water reclaim. The insertion probe with a ceramic‑coated electrode survives abrasive magnetite slurry at 15 m/s flow speed.
Transmitter and Output Options
Silver Instruments pairs the insertion probe with our SI‑MAG compact or remote transmitter. The standard output is 4 mA to 20 mA with HART protocol. Modbus RTU over RS‑485 is optional. For sites without 24 V DC power, we offer a battery‑powered version with an internal lithium pack and a local LCD totalizer. It runs for up to five years on one battery and stores 90 days of hourly flow data.
In practice most orders include the remote transmitter with a 10‑meter cable. This keeps the electronics away from heat, vibration, or flooding. If you need to connect four meters into one PLC, the RS‑485 multidrop option saves wiring and analog input cards.
Installation Considerations and Flow Conditioning
Insertion probes need a straight run of pipe to avoid profile distortion. The minimum is 10D upstream and 5D downstream when the probe sits at the pipe centerline. If you have a partially closed butterfly valve within 5D of the probe, expect a measurement offset of 3 to 5 percent. We always ask for a photo of the pipe run before quoting. It costs nothing and prevents inaccurate readings.
The probe insertion depth is adjustable. For pipes below DN300 the tip sits at the centerline. Above DN300 we insert to one‑eighth of the diameter where the average velocity best represents the mean flow. The hot‑tap mechanism allows retraction even at full line pressure, so you can adjust depth without a shutdown.
How to Get a Quote and What Information We Need
Send us your pressure in bar, temperature in degrees Celsius, pipe inside diameter in mm, and the flow range you expect. Tell us the fluid name and its conductivity if you know it. We also need the pipe material, because a stainless‑steel pipe needs a different ground ring approach than a plastic or concrete pipe. Send these details to [email protected] or reach us on WhatsApp at +86‑25‑52155837. You can also call us at +86‑25‑68650347 or connect on WeChat +86 13512131526. Pictures and a simple sketch help a lot.
FAQ
Can the probe be installed on a vertical pipe?
Yes. Flowing upward is best because it keeps the probe submerged and prevents air bubbles from collecting on the electrodes.
What is the minimum conductivity the fluid needs?
5 µS/cm for standard electrodes. Deionized water and pure hydrocarbons below this threshold will give zero reading. For low‑conductivity fluids we suggest a capacitance electromagnetic probe.
How often do the electrodes need cleaning?
In clean water, once a year is enough. Oily water or sludge may need cleaning every few months. The hot‑tap retractor lets you pull the probe, wipe the tip, and reinsert without a shutdown.
Is ATEX certification available for gas group IIC?
Yes, Ex d IIC T6 Gb for Zone 1 and Ex tb IIIC T85 °C Db for Zone 21 dust. IECEx is also in scope.
Can I use one transmitter for two insertion probes?
No. Each probe needs its own transmitter. You can network multiple transmitters over Modbus and read all flows on one HMI.
