16 Inch Magnetic Flow Meter: High-Volume Municipal Infrastructure Sizing
Quick Answer: A 16 inch magnetic flow meter targets DN400 municipal water lines, raw water intake, and wastewater effluent. Typical flow range is 450 to 1,400 m3/h at 1 to 3 m/s. Silver Instruments recommends the SEM-16F series with 0.5 percent accuracy, PN16 flanges, 4-20 mA HART, and IP68 options for underground vaults.
Why 16 Inch Size Fits High Volume Municipal Lines
Municipal plants in Vietnam, the Philippines, Nigeria, and Mexico often run DN400 pipes for main water distribution and sewer collection. A 16 inch meter matches these lines without expensive reducers. At 2 m/s, a DN400 line moves around 930 m3/h. Municipal engineers size high volume meters for peak hour demand plus fire flow or stormwater bypass, so a 16 inch meter covers most city zones.
Here is the thing. Flow velocity below 0.3 m/s reduces accuracy and can let solids settle. Velocity above 5 m/s shortens liner life and increases pressure drop. Most municipal applications stay between 1 and 3 m/s. In practice, a 16 inch mag meter handles 470 to 1,400 m3/h in that band. This range fits clean water, raw water, and treated effluent.
Key Sizing Parameters for DN400 Magnetic Flow Meters
Send us your flow range and pipe schedule first. For a 16 inch meter, we check five parameters.
Pipe diameter is DN400 or 16 inch NPS. Flange rating is usually ANSI 150 or PN10, PN16, PN25. Operating pressure for municipal lines in Southeast Asia is often 6 to 10 bar, but some Middle East pumping stations run 16 bar. The SEM-16F supports PN16 standard and PN25 on request.
Fluid conductivity must be above 20 µS/cm. Drinking water typically runs 200 to 800 µS/cm. Raw river water can vary from 80 to 500 µS/cm. Magnetic flow meters do not work with deionized water below 5 µS/cm. Most municipal water is fine.
Liner and electrode selection matters. For drinking water and wastewater, Silver Instruments uses EPDM rubber liners and 316L electrodes as standard. For chlorine dosed lines or aggressive industrial discharge, PTFE or PFA liners with titanium or Hastelloy electrodes are available. We have supplied 16 inch PTFE lined meters to a desalination plant in Oman.
Accuracy of the SEM-16F is 0.5 percent of reading from 0.5 to 10 m/s. Repeatability is 0.2 percent. Output options include 4-20 mA HART, pulse, RS485 Modbus, and a local display. The display shows flow rate in m3/h, totalizer in m3, and velocity in m/s.
Recommended Silver Instruments Model for 16 Inch Lines
Use the Silver Automation Instruments SEM-16F series for DN400 municipal infrastructure. This is a flanged full bore electromagnetic flow meter. No moving parts. No pressure drop. The standard unit includes an EPDM liner, 316L electrodes, carbon steel body with blue epoxy coating, IP67 housing, and a remote or compact display. IP68 is optional for flooded meter pits.
We can supply the meter with a flange drill pattern for ASME B16.5 Class 150, BS 4504 PN16, or JIS 10K. Customers in Malaysia, Indonesia, and Chile often request PN16. Customers in Saudi Arabia and UAE request ANSI 150. We keep adapters and grounding rings in stock for both.

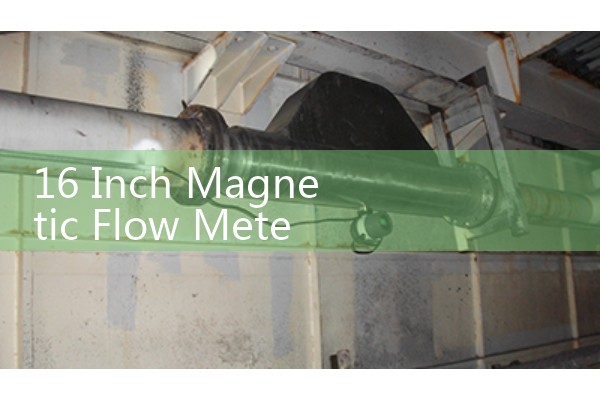

In 2024 a water utility in Cebu, the Philippines ordered three SEM-16F units for a main transfer line. Their operating point was 1,100 m3/h at 2.2 bar
_600x400.jpg)
Installation Notes for Municipal Water and Wastewater Plants
Most engineers skip this part and then see unstable readings. For a 16 inch magnetic flow meter, install the sensor in a full pipe section. Avoid the top of a horizontal line if air pockets are possible. For wastewater, place the meter in a rising pipe or a below grade vault with the pipe always flooded.
Provide at least 5 pipe diameters of straight length upstream and 2 diameters downstream. For DN400 this means 2.0 m upstream and 0.8 m downstream. Grounding rings or liner protectors are required for lined pipe or cathodic protected pipe. Connect the signal cable separately from power cables.
Pair the flow meter with a pressure transmitter on the same line. Silver Instruments supplies 0 to 16 bar pressure transmitters with 4-20 mA output. You can log both signals on a paperless recorder. This gives you flow, pressure, and totalized volume for pump station reports.
Price and Lead Time Information for Engineers and Buyers
A 16 inch magnetic flow meter from Silver Automation Instruments costs between USD 2,400 and USD 4,800 depending on liner, flange rating, and IP rating. PTFE liners add cost. IP68 remote mounting adds cost. Quantity orders for 5 units or more get better freight rates.
Standard lead time is 10 to 18 days for DN400. Custom flange drilling or PTFE liner takes 20 to 25 days. We ship to Australia, the Gulf, Southeast Asia, Latin America, and Africa by air or sea. For a firm quote, send us your flow range in m3/h, pipe size in DN, pressure in bar, temperature in Celsius, and fluid type.
You can reach our sales engineers at Tel: +86-135-1213-1526 or Whatsapp: 86-135-12131526. WeChat: +86 13512131526. We reply within 12 hours on business days.
FAQ
What is the typical flow range for a 16 inch magnetic flow meter?
A DN400 meter measures 470 to 1,400 m3/h at 1 to 3 m/s. The full range is around 40 to 4,600 m3/h at 0.1 to 10 m/s. Select the meter based on normal flow, not peak only.
Can a 16 inch magnetic flow meter handle drinking water and raw water with low conductivity?
Yes. Drinking water at 200 to 800 µS/cm is well above the 20 µS/cm minimum. Raw river water is usually acceptable. Avoid very clean condensate or demineralized water without checking conductivity first.
What liner and electrode materials work for municipal wastewater?
EPDM rubber and 316L electrodes work for most municipal wastewater. For high chlorine, hydrogen sulfide, or industrial trade waste, use PTFE or PFA liner with titanium or Hastelloy electrodes.
What is the minimum straight pipe length for a DN400 magnetic flow meter?
Use 5 pipe diameters upstream and 2 pipe diameters downstream. For DN400 that equals 2.0 m upstream and 0.8 m downstream. More upstream length helps when there are pumps, elbows, or control valves before the meter.
How much does a 16 inch magnetic flow meter cost and what is lead time?
Price ranges from USD 2,400 to USD 4,800. Standard lead time is 10 to 18 days. Custom liners or flange drilling take 20 to 25 days. Contact Silver Instruments for a firm quote.
