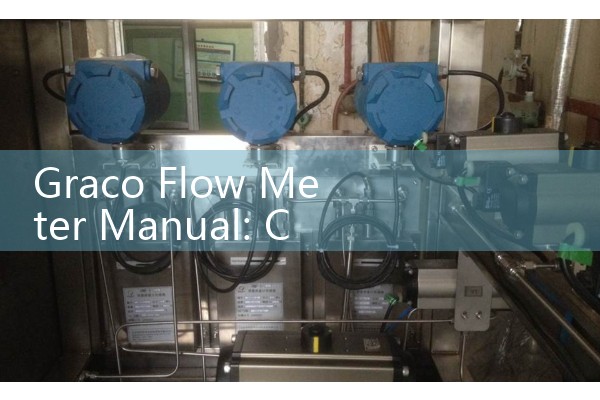

Graco Flow Meter Manual: Calibrating High-Pressure Spur Gear Sensors for Automotive Painting Skids
Quick Answer: The Graco flow meter manual for high-pressure spur gear sensors on automotive painting skids requires a field calibration with actual paint or a matched viscosity reference fluid. You must confirm the K-factor, back pressure, and pulse output before trusting flow total or ratio control. Silver Automation Instruments offers compatible positive displacement meters and application support for these paint skid replacements.
High-pressure spur gear sensors sit in the paint circulation line before or after the color valve stack. Their job is simple. They count pulses. Each pulse equals a fixed volume of paint. If the K-factor is wrong, the robot controller adds too much or too little hardener. The painted car body then shows solvent pop or dry spray. We have seen this on customer sites many times.
Why Spur Gear Sensors Drift on Paint Skids
Spur gear meters are positive displacement devices. They move a small volume of liquid through two meshing gears. The pickup reads each tooth pass. That part is reliable. The drift comes from the fluid. Automotive coatings are shear-sensitive. They change viscosity with temperature and shear. A solventborne basecoat may be 60 cP at 25 °C but 45 cP at 30 °C. That shift changes slip across the gears. It also changes the effective volume per pulse.
Here is the thing. Most engineers skip this part. They calibrate with an oil or solvent because it is clean. Then they wonder why the ratio drifts when spraying a metallic basecoat at 70 bar. Use the actual paint recipe for final verification. If the line is solvent-purged, run the calibration after the paint has pushed all solvent out of the sensor.
What the Graco Manual Calibration Sequence Covers
The manual sequence for a high-pressure spur gear flow meter on a paint skid normally includes zero check, single point field check, and two point verification. You do not need to remove the sensor from the skid for most checks. You need a graduated cylinder, a stopwatch, and a way to read raw pulses. Some PLC systems let you read the counter directly. Others use a handheld pulse counter with a 4-20 mA HART interface.
A typical sensor on a basecoat skid may have a K-factor of 3000 pulses per litre. The low flow point may be 0.2 L/min. The high flow point may be 2.0 L/min. In practice, many paint shops only verify the high flow point because that is the normal spray window. But a single point will not catch viscosity-related slip at low speed.
Step by Step Field Calibration Without Special Tools
First, check the sensor mounting. The meter must stay full. It must not be at the highest point of the paint line. Air pockets cause under-counting. Keep at least 1 metre of straight pipe downstream of a reducer. If the sensor is installed right after a 90 degree elbow, the gear chamber may see uneven velocity. That changes pulse stability.
Second, bring the skid to normal operating temperature. For most automotive clearcoats this is 25 °C to 30 °C. Let the paint circulate for at least 20 minutes. Read the actual paint temperature with a PT100 probe in the line. Do not trust the room temperature.
Third, divert paint into a graduated cylinder. Start the pulse counter at the same moment. Run the flow point for 60 seconds. Record the volume and the pulse total. Calculate pulses per litre. Compare that value to the K-factor stored in the PLC. If the error is more than 1 percent, adjust the K-factor.
Fourth, repeat at low flow. A good target is 20 percent of the normal spray flow. For a high-pressure clearcoat skid spraying at 1.5 L/min, the low point is 0.3 L/min. The low point error may be 2 to 4 percent. That is normal for a gear meter on high viscosity paint. If the error exceeds 5 percent, check the gears for wear or coating build-up.
Fifth, check back pressure. Spur gear sensors on high-pressure painting skids need stable back pressure above paint vapour pressure. A typical clearcoat line runs at 50 to 80 bar supply pressure and 10 to 15 bar back pressure after the sensor. If back pressure drops below 5 bar, the fluid flashes. The meter counts vapour bubbles as liquid. That error is not fixed by K-factor.
<
Fluid and Pressure Settings That Change K-Factor
Do not calibrate a high-pressure paint skid sensor with water unless the manual allows it. Water is 1 cP. Paint is 50 to 300 cP. Gear meters slip less with high viscosity fluids. A K-factor measured on water can be 3 to 6 percent higher than on paint. That is enough to upset a clearcoat hardener ratio.
Pressure also changes the chamber volume. A high-pressure spur gear sensor rated to 210 bar may change by 0.2 percent from 10 bar to 80 bar. That sounds small. In a 2K paint mix, a 0.2 percent shift in two flow meters can create a 0.4 percent ratio error. Most automotive paint shops reject anything beyond 1 percent. So pressure matters.
Use a signal converter that reads frequency and outputs 4-20 mA HART. A good converter stores two K-factors. One for solvent flush. One for production paint. That avoids manual recalculations after every colour change.
Signs Your High-Pressure Sensor Needs Replacement
When a spur gear sensor wears, the teeth lose their sharp edges. The pulse output becomes rough. You may see flow total jump even when the robot is not spraying. That can be electrical noise or a damaged pickup. Check the cable shield and the sensor gap first.
Another sign is a K-factor that will not hold stable across three repeated runs. A healthy sensor should repeat within 0.3 percent. If you see 1.5 percent scatter, the gears may be worn or the bearings may be loaded with cured paint. Flush with a solvent that matches the coating chemistry. Do not disassemble the meter unless you have the Graco manual and a clean bench.
We have supplied replacement positive displacement flow meters to a paint shop in Thailand and a tier-one automotive supplier in Mexico. Their issue was not always the meter body. It was the pickup or the signal converter. So check the complete loop before changing the sensor.
Silver Instruments Replacement Flow Meter Options
Silver Automation Instruments is a flow meter manufacturer and supplier for industrial paint circulation, chemical dosing, and high-viscosity fluid monitoring. For automotive painting skids, we recommend a stainless steel oval gear meter with pulse output and 4-20 mA HART option. Common sizes for paint skid replacement are DN6, DN10, and DN15. Pressure ratings up to 100 bar are available. Higher ratings can be confirmed for your specific high-pressure clearcoat line.
Tell us your paint type, solvent, viscosity in cP, pressure in bar, temperature in °C, pipe size in DN, and flow range in L/min. We will recommend a meter body, pickup, and signal converter that fits your existing PLC or robot controller. Send your process data to Silver Automation Instruments.
Contact Silver Instruments for a quote or technical check.
Tel: +86-25-68650347
WhatsApp: +86-25-52155837
WeChat: +86 15365082610
Website: flow-meter.com.au
FAQ
Can I calibrate a high-pressure spur gear paint sensor with solvent only?
No. Solvent viscosity is much lower than paint. A solvent-only K-factor can be 3 to 6 percent high. Use actual paint or a matched viscosity reference fluid for final verification.
What is a normal K-factor for a high-pressure paint skid spur gear sensor?
Many sensors have a K-factor between 2000 and 5000 pulses per litre. The exact value depends on meter size, gear geometry, and fluid. Always use the value from the Graco flow meter manual or the sensor data plate.
Why does my paint flow signal jump when back pressure drops?
The sensor may be counting vapour bubbles. A drop below paint vapour pressure lets dissolved gas or solvent flash. Keep back pressure above 5 bar or the value specified in the skid design.
How often should I check the K-factor on a paint skid sensor?
Check after any major colour change, after a solvent purge, or when the PLC shows a ratio drift beyond 1 percent. A monthly field check is enough for most stable lines.
Can Silver Automation Instruments replace a Graco high-pressure spur gear sensor on a paint skid?
Yes. We supply stainless steel oval gear and positive displacement meters with pulse or 4-20 mA HART output. Send your paint type, pressure, temperature, DN, and flow range for a compatible replacement.
