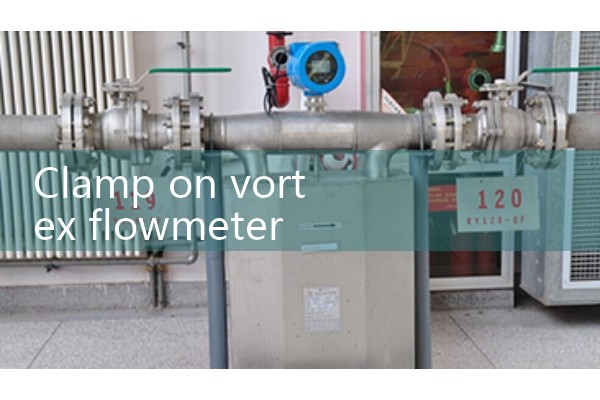

Clamp on vortex flowmeter | Where is the flowmeter usually installed

『Clamp on vortex flowmeter』Related information(flow rotameter|digital flow meter|balo meter|hydraulic flow meter|volumetric meter|positive displacement meter|pitot tube flow meter|displacement meter|cfm meter|variable area flow meter|inline flow meter|differential pressure flow meter|calibrated flow meter|velocity meter|paddle wheel flow meter|oval gear flow meter|anemometer hvac|multiphase flow meter|doppler flow meter|thorpe tube flowmeter|heat flow meter)

1. Technical parameters of vortex gas flowmeter

The technical parameters of vortex gas flowmeter are as follows: caliber range: from DN15 to DN3000mm, even larger, with rubber liquid resistance and wide applicability. Nominal pressure: covering 0.6MPa to 42MPa, ensuring stable operation under various working conditions. Working temperature: ranging from 200 ℃ to+500 ℃, and can even withstand higher temperature conditions. Accuracy control: Control within the range of ± 0.2% to ± 1.5% FS to ensure the accuracy of measurement results. Range ratio: 1:10, able to adapt to flow changes and provide a wide measurement range. Shell material: Available in carbon steel and stainless steel, or with fluorine lining. Power supply method: Equipped with a built-in 3.6VDC lithium battery, with a replacement cycle of two years; Simultaneously supporting external 24VDC power supply, providing flexibility. Output signal: Provides standard 4-20mA two-wire signal and pulse output 0-1000Hz; supports RS232/RS485 interface, can be customized according to Liang Chuns needs. Protection level: IP65, ensuring safe operation of the equipment in various environments. Safety performance: Compliant with explosion-proof standards, certified with intrinsic safety ExiallCT4 and explosion-proof ExdllCT4. Header display function: including cumulative flow rate, instantaneous

2. What media can flow meters be used to measure?

The question you raised is quite significant, because the type of flow meter used and the medium are only one factor, and other comprehensive factors such as pipe diameter, pressure, temperature, etc. need to be considered.. Regarding clamp on flow meters, only ultrasonic flow meters are available because their measurement is non-contact, while other flow meters are contact type and must be in contact with the medium. Therefore, there is no installation method of clamp on the outside of the pipe. In addition, there are many flow meters that can measure gases, such as orifice plates, vortex streets, waist wheels, turbines, ultrasonic waves, mass flow meters, and so on. And there are even more methods for measuring liquids, too many to list, almost all of which can be measured. Viscous liquids or particulate lead can be measured, but the specific flow meter used for measurement still needs to consider other factors. 3. Where is the flow meter usually installed
