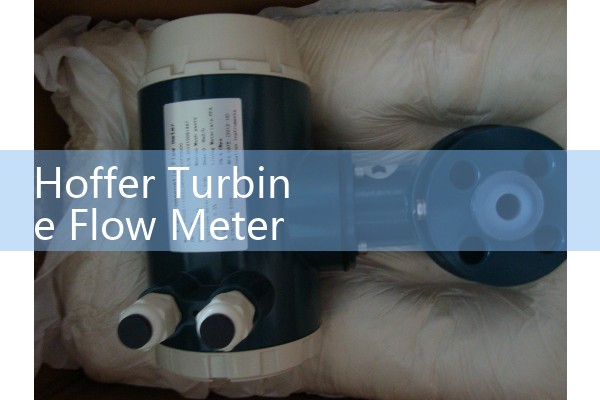

Hoffer Turbine Flow Meter Sizing: Selecting Rotor Materials for Chemical Processing Pipelines
Quick Answer: For clean chemical lines below 80 °C, start with a 316 stainless steel rotor. For chlorides, acids, and conductivity above 500 µS/cm, select Hastelloy C or Monel based on the full chemical list. Send your pressure in bar, temperature in °C, pipe size in DN, and flow range to Silver Automation Instruments for a rotor material and sizing check.
Chemical processors in Thailand, Vietnam, the Middle East, and Latin America use Hoffer turbine meters on solvent feed lines, reactor charge systems, and pilot plant skids. A failed rotor stops a batch. The cause is rarely the meter body. The real cause is usually rotor material choice or incorrect sizing.
Why rotor material decides service life
Rotor material selection starts with the full chemical list. A 316 stainless steel rotor works on acetone, toluene, ethanol, and light hydrocarbons. The same rotor pits quickly in hot hydrochloric acid or wet chlorine service. We have seen this on customer sites in Vietnam. A paint manufacturer near Ho Chi Minh City replaced three stainless rotors in 14 months because the solvent blend contained trace chlorides. The fix was a Hastelloy C rotor and matching bearings.
Do not guess from the base fluid alone. Add trace impurities, wash solvents, and regeneration chemicals. These small streams decide corrosion rate. In one desalination chemical dosing line, the main fluid was clean water. The weekly citric acid flush attacked the rotor bearings. The meter lost repeatability after six weeks. Conductivity above 500 µS/cm can accelerate galvanic corrosion on stainless steel components, even when the pH looks mild.
Sizing data you need before selecting a rotor
Hoffer turbine meter sizing starts with five values: minimum flow rate, normal flow rate, maximum flow rate, viscosity at operating temperature, and pipe size. For chemical pipelines, we normally ask for pressure in bar, temperature in °C, and flow in kg/h or m³/h. Give us the fluid name and the pipe schedule. That is enough for a first pass.
Viscosity is the main trap. Turbine meter linearity shifts when viscosity climbs above 5 cP. Many solvents stay near 0.4 to 1.2 cP. Acetone at 20 °C runs about 0.32 cP. Ethylene glycol at 25 °C is about 16 cP. A meter sized for acetone will not read the same on glycol. If your line runs multiple products, size for the highest viscosity product, not the average.
Back pressure matters more than most people expect. For a turbine meter on a light hydrocarbon, keep enough downstream pressure to prevent cavitation. A common rule is 2.5 times the pressure drop plus 1.25 times vapor pressure. In field terms, a 1 bar drop may need at least 3 bar downstream. We have seen batch reactors pulling vacuum during transfer and destroying rotor bearings through cavitation. That failure has nothing to do with rotor material. The meter body gets blamed for cavitation damage.
Common rotor materials for chemical pipelines
316 stainless steel is the default rotor for neutral and mild organic streams. It suits DN15 to DN80 lines from about 0.2 to 20 m³/h depending on size. Use it for acetone, MEK, ethanol, and light fuel oils. Avoid it with free chlorides above 50 ppm at elevated temperature.
Hastelloy C rotors fit acidic streams, chlorinated solvents, and many mixed chemical wastes. This material costs more but survives conditions that eat 316 in months. We size Hastelloy C rotors for hydrochloric acid below 15 percent concentration at ambient temperature. For hot sulfuric acid service, confirm concentration and temperature first. Hastelloy C is not a universal acid answer.
Monel rotors suit hydrofluoric acid, seawater, and some caustic streams. A desalination plant in the Middle East uses a Monel rotor on a seawater feed line because 316 pitted after six months. The flow range was 4 to 40 m³/h on a DN50 line. Monel solved the pitting.
Some low-pressure acid lines use a PVDF rotor with ceramic bearings. This option only works where pressure stays below 10 bar and temperature stays under 60 °C. We do not recommend PVDF for abrasive slurries or sudden pressur
A practical sizing walkthrough
A chemical distributor in Thailand needed a Hoffer turbine meter for a DN40 acetone line. Normal flow was 1,800 kg/h, minimum 300 kg/h, maximum 2,400 kg/h. Pressure was 4 bar, temperature 30 °C. Viscosity at that temperature was 0.32 cP. The selected meter had a 316 stainless steel rotor and tungsten carbide bearings. The 10:1 turndown covered the 300 to 2,400 kg/h range. A smaller DN25 meter would have added more pressure drop and increased bearing wear. The DN40 meter stayed inside the linear range with less velocity stress.
That example shows why matching the pipe size alone is not enough. Some engineers match the meter to the existing pipe. That approach works sometimes, but the pipe size match does not protect the rotor. A one-size-smaller meter increases velocity and may cut bearing life in half. A one-size-larger meter may lose accuracy at minimum flow. Send us the flow range and pipe size. We check both.
Installation details for chemical batch lines
Install the Hoffer meter with straight run upstream and downstream. Ten diameters upstream and five downstream work for most turbulent chemical flow. Put a 200 mesh strainer before the meter on new lines. Welding slag and tape kill turbine rotors faster than chemicals. We have seen this many times on new skids in Malaysia and Indonesia.
For batch loading, do not let the pump dead head after the meter. Sudden flow stop shocks the rotor. Use a check valve and pressure relief in the right order. In hot solvent transfer, keep the meter full. Vapor pockets cause rotor overspin and dry bearing wear. This is common when lines drain after each batch.
In hazardous areas, a Hoffer turbine meter with 4-20 mA HART output can connect to a flow computer with a PT100 temperature input and a pressure transmitter. This setup gives temperature-compensated mass flow in kg/h without opening the line. One of our customers in Indonesia runs this arrangement on a solvent terminal inside an ATEX Zone 1 area. The pulse output goes to the control system, and the HART signal carries diagnostics.
FAQ
Q1: Which rotor material is best for sulfuric acid?
The answer depends on concentration and temperature. For dilute sulfuric acid at ambient temperature, Hastelloy C works in many cases. For hot or concentrated sulfuric acid, send us the full acid concentration and temperature. We check with the meter builder before quoting.
Q2: Can a Hoffer turbine meter handle viscous polymer?
Do not use a turbine meter for polymer above 5 cP. Turbine meters lose linearity in high viscosity service. For high viscosity polymer, a positive displacement or Coriolis meter works better. We can supply an oval gear meter for polymer batches if the process viscosity stays above 20 cP.
Q3: What data does Silver Instruments need for a sizing quote?
Send pressure in bar, temperature in °C, pipe size in DN, flow range in kg/h or m³/h, and full fluid name including trace chemicals. Add the hazardous area classification if the meter goes into a Zone 1 or Zone 2 area.
Q4: Does Silver Automation Instruments supply Hoffer turbine meter spare parts?
Yes. We supply rotors, bearings, pickups, and preamplifiers for many Hoffer turbine meter models. Tell us the serial number and we will check the spare part cross reference.
Q5: What pipe size should match a DN25 Hoffer meter?
A DN25 meter fits a DN25 line in many cases, but the flow range is more important. Too high a velocity shortens bearing life. Too low a velocity loses accuracy. Send us the normal and minimum flow rates. We will confirm whether DN25 or DN40 is the right body size.
Tell us your pressure in bar, temperature in °C, pipe size in DN, flow range in kg/h or m³/h, and full fluid name including trace chemicals. We will check rotor material compatibility and recommend a Hoffer turbine meter size for your process. Contact Silver Automation Instruments at Tel: +86-25-68650347, WhatsApp: +86-25-52155837, or WeChat: +86 15365082610.
