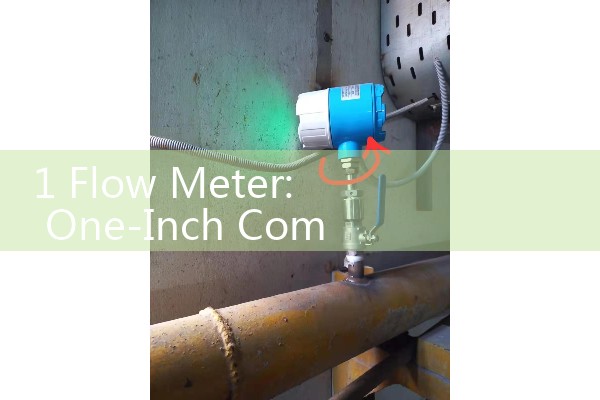

One-Inch Flow Meter: Commercial Stainless Steel Valves for Metering Stations
Quick Answer
A 1‑inch flow meter paired with a commercial stainless steel valve gives you a complete metering point ready for water, chemicals, or food‑grade liquids. These valves are machined from 304 or 316 stainless bar stock, full‑bore, and hold up well at 16 bar or 40 bar depending on your flange standard. At Silver Instruments we supply the flow meter and the valve as a matched set, tested for zero leakage before shipping. Most engineers prefer this because one purchase order covers the whole assembly and the flange alignment is guaranteed.
Why the valve matters more than you think
Many site teams buy a magnetic or Coriolis flow meter from one vendor and a valve from another. That works until a leak starts at the joint. When the valve body material does not match the meter housing, galvanic corrosion appears fast, especially in coastal plants in Malaysia or the Philippines. A 316 stainless valve connected to a 304 meter flange in a humid, salty environment starts pitting within six months. We have seen this on a fish processing line in Vietnam last year. The plant replaced three individual valves before we delivered matched 316L sets.
Here is the thing: a commercial stainless valve for a 1‑inch flow meter is not just an on‑off device. It also sets the straight‑run conditions. A full‑bore ball valve with the correct inner diameter keeps the velocity profile intact. A reduced‑bore valve adds turbulence right at the inlet. That can shift the meter reading by 1% to 2% on an electromagnetic meter. In batching applications for paint or resin, that small error adds up to big material cost overruns.
Which valve type suits which flow meter
For turbine and oval gear meters, use a full‑bore ball valve with stainless steel balls and PTFE seats. The ball valve gives you a tight shutoff and quick quarter‑turn operation. In a batch blending system in a Middle Eastern lubricant plant, we supplied a 1‑inch oval gear meter with a 316 ball valve. The operator closes the valve at the exact batch total, no drips.
For electromagnetic flow meters, we recommend a wafer‑style butterfly valve with a 316 body and EPDM or PTFE liner. A butterfly valve saves space and weight, and when fully open the disc sits outside the flow profile. A sugar refinery in Thailand ordered ten 1‑inch magmeters with EPDM‑lined butterfly valves for a CIP loop. They needed full drainage, so the valve was mounted with the stem horizontal.
Coriolis mass flow meters already act as a dense point in the pipe. A compact 1‑inch stainless needle valve works well for sampling or venting, but for main isolation we stick to a flanged ball valve. A chemical distributor in South Africa uses a 1‑inch Coriolis meter with a 600‑psi rated 316 ball valve for solvent transfer. The combination holds up against acetone and MEK with zero external leakage.
Installation tips that cut commissioning time
Mount the valve on the downstream side of the meter unless the process requires upstream isolation for meter removal. Downstream placement keeps the valve’s minor turbulence away from the sensor. Maintain at least 5 diameters of straight pipe before the meter and 2 diameters af
Use full‑face gaskets. A protruding gasket inside a 1‑inch line reduces the effective ID by up to 3 mm. That creates a jet effect that confuses the velocity calculation in a vortex meter. In practice, most engineers skip this check until the flow total is 5% off the weigh scale.
Align the bolting gradually in a star pattern. When torqueing a 1‑inch ANSI 150 flange, step up to 25 N·m in three increments. This stops the valve body from warping. A warped ball valve can stick halfway, and on a steam‑traced line that means a burnt actuator.
Where Silver Instruments fits in
We machine our own commercial stainless valves in grades 304, 316, and 316L at our Nanjing workshop. Every valve gets a shell test at 1.5 times the rated pressure before it leaves the floor. For a 1‑inch flow meter assembly, we offer electromagnetic, turbine, oval gear, and Coriolis meter options with matching valves. Typical deliveries to Southeast Asia, Oceania, the Middle East, and Latin America take 7 to 14 days by air freight. A recent shipment of 15 meter‑valve sets went to a water reuse plant in Peru and arrived in 9 days.
Send us your pipe size (DN), pressure (bar), temperature (°C), liquid type, and flow range (L/min or m³/h). We will propose a meter‑valve combination with a dimensional drawing and a fixed price.
FAQ
Can I use the same stainless valve for water and for 30% caustic soda?
Yes, but the trim material changes. For water, EPDM seats work fine. For caustic, you need PTFE seats and a graphite‑filled stem seal. We specify the valve internals based on your full chemical list.
Does a 1‑inch commercial valve handle steam at 180°C?
With a 316 body and metal‑seated ball, yes, up to 200°C. Let us know the steam pressure so we can check the saturated temperature rating. For direct steam metering we often supply a vortex meter with a high‑temperature ball valve.
What is the typical delivery time for a 1‑inch meter with a stainless steel valve pre‑assembled?
If the combination is in our standard stock, we ship within 3 working days. Custom assemblies, like tri‑clamp ends for a food plant, add 5 to 7 working days.
Do you supply the gaskets and bolts for the valve connection?
Yes, every meter‑valve set includes two full‑face gaskets, a set of stud bolts with nuts, and two washers per bolt. You unbox it and bolt it in.
Can I get a 1‑inch stainless valve with an electric or pneumatic actuator instead of a manual handle?
Absolutely. We pair the valve with a 24 VDC or 220 VAC electric actuator with limit switches, or a spring‑return pneumatic actuator for emergency shutdown. Give us your control voltage and fail‑position requirement.
For a same‑day quotation, email [email protected], call +86-135-1213-1526, or message us on WhatsApp at 86-135-12131526. WeChat users reach us at +86 13512131526. Mention the pipe size and media and we will get a datasheet to you within two hours during business hours.
